Complete Vacuum Workholding Systems: Large Vacuum Chucks & Vacuum Pumps
Each Complete Vacuum Workholding System Includes a Large Vacuum Chuck, and Air Venturi Vacuum or Portable Electric Vacuum Pump as the Vacuum Supply
These Complete Large Vacuum Workholding Systems include everything needed to get started vacuum workholding including Large Size Vacuum Chuck, Vacuum Pump, Gasket Cord, and Vacuum Port Air Supply.
- Choose the Size Large Vacuum Chuck Needed: Three sizes available: 13″ x 25″, 18″ x 36″, 24″ x 48″.
- Choose Vacuum Supply: Automatic Air Powered Vacuum Pump, Portable Oil-Free Electric Vacuum Pump or Air Venturi Vacuum Generator Pump.
Choose the best Complete Vacuum System for your application below!
Page Down to View Systems
Compare Two Ways:
Vacuum Pump Type Electric Vacuum Pump
Electric Vacuum Pump
Automatic Air Venturi Vacuum Pump
Air Venturi Vacuum Generator Pump
Vacuum Chuck Size
13″ x 25″ Vacuum Chuck
18″ x 36″ Vacuum Chuck
24″ x 48″ Vacuum Chuck
Systems by Vacuum Pump Type
Portable Automatic Air Venturi & Electric Vacuum Pump and Air Venturi Vacuum Generator Pump

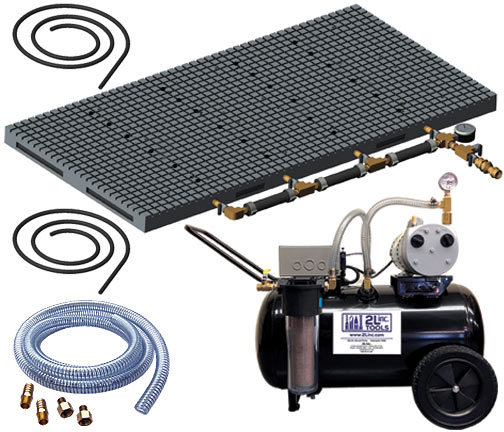

These Complete Vacuum Workholding Systems Include:
- 10 CFM, Oil Free Portable Electric Vacuum Pump.
- Choice of Large Vacuum Chuck: 13″ x 25″, 18″ x 36″ or 24″ x 48″.
- Gasket Cord, Hose Kit and Vacuum Port Assembly.

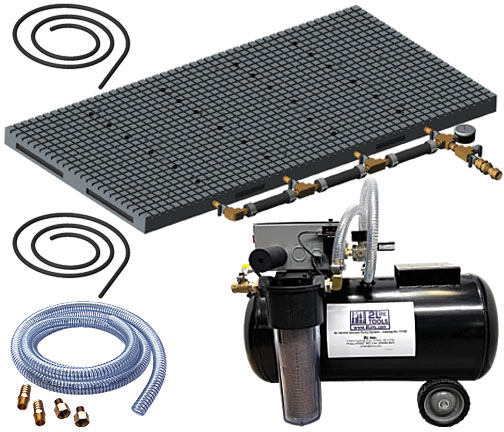

These Complete Vacuum Workholding Systems Include:
- 4.5 SCFM Automatic Air Venturi Vacuum Pump creates vacuum using shop air.
- Choice of Large Vacuum Chucks: 13″ x 25″, 18″ x 36″ or 24″ x 48″.
- Gasket Cord, Hose Kit, and Vacuum Port Assembly.

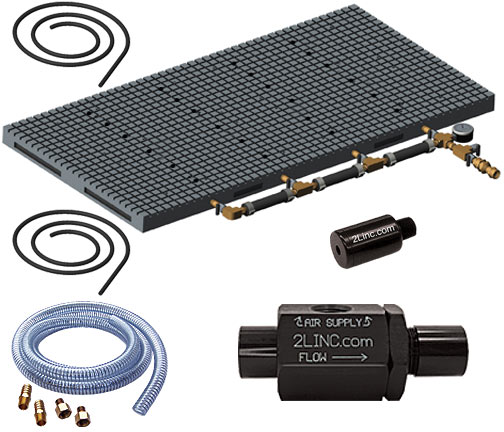

These Complete Vacuum Workholding Systems Include:
- Air Venturi Vacuum Generator Pump (connects to shop air).
- Choice of Large Vacuum Chuck: 13″ x 25″, 18″ x 36″ or 24″ x 48″.
- Gasket Cord, Hose Kit and Vacuum Port Assembly.
Systems by Vacuum Chuck Size
13″ x 25″, 18″ x 36″, and 24″ x 48″ Precision Ground Aluminum Vacuum Chucks
Choose From Three Vacuum Pumps
These Complete Vacuum Workholding Systems Include:

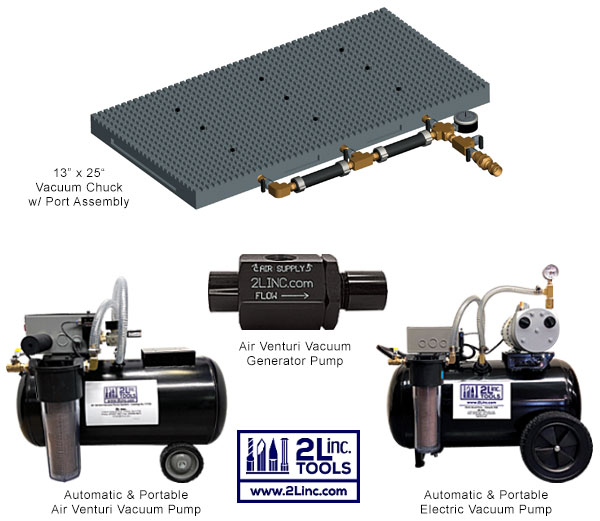

- 13″ x 25″ Vacuum Chuck and Port Assembly.
- Choice of Automatic Air Venturi Vacuum Pump, Portable Electric Vacuum Pump or Air Venturi Vacuum Generator Pump.
Choose From Three Vacuum Pumps
These Complete Vacuum Workholding Systems Include:

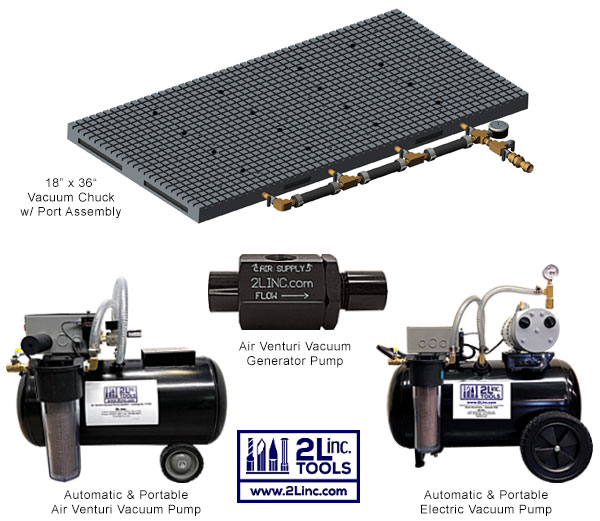

- 18″ x 36″ Vacuum Chuck and Port Assembly.
- Choice of Automatic Air Venturi Vacuum Pump, Portable Electric Vacuum Pump or Air Venturi Vacuum Generator Pump.
Choose From Three Vacuum Pumps
These Complete Vacuum Workholding Systems Include:

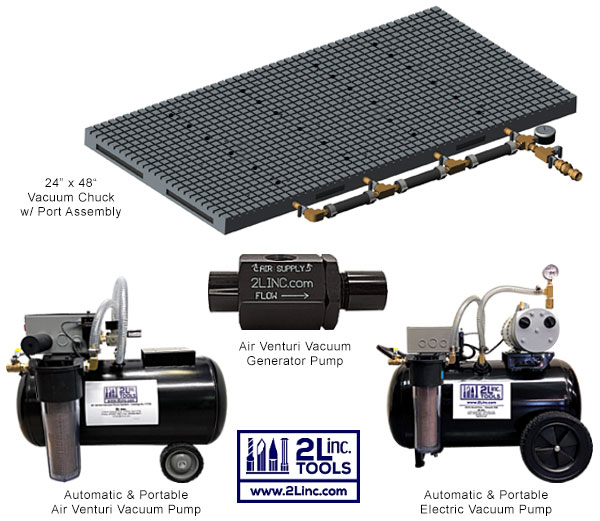

- 24″ x 48″ Vacuum Chuck and Port Assembly.
- Choice of Automatic Air Venturi Vacuum Pump, Portable Electric Vacuum Pump or Air Venturi Vacuum Generator Pump.
